The EC-CLI Electrospinning Platform

The Electrospinning Machine Built for Reproducible Research

Climate-controlled precision. Modular flexibility. Medical-grade heritage. VIVOLTA’s EC-CLI is the electrospinning system trusted by leading universities and research institutes across six continents since 2008.

What Sets the EC-CLI Apart

Fully Integrated Climate Control — Standard on Every System

Other electrospinning machines treat environmental control as an afterthought. On the EC-CLI, it is foundational. Temperature and humidity are independently regulated via closed-loop feedback sensors that continuously verify actual conditions against your setpoints — even during extended multi-hour experiments.

20–45°C

±0.5°C accuracy

10–80% RH

±2% accuracy

<5 min

Humidity settling

10–40 min

Temperature settling

Extend Your Capabilities with Plug-and-Play Electrospinning Equipment

A growing library of add-on modules integrates seamlessly with the EC-CLI core system — no downtime, no reconfiguration headaches.

EM-ASM

Anti-Statics Module

Neutralize charge buildup for consistent runs
EM-GSM

Gas Shield Module

Stabilize volatile solvents at the nozzle tip
EM-TMM

Thickness Measurement

Patent-protected real-time optical monitoring
EM-RDC

Rotating Drum Collector

Large membranes with controlled fiber orientation
EM-CAX

Coaxial Nozzle

Core–shell nanofibers for encapsulation & drug delivery

EC-CLI Technical Specifications

Climate Control

LabsLabs
Cabin temperature range20–45°C, ±0.5°C
Cabin humidity range10–80%, ±2%
Temperature settling time10–40 minutes
Humidity settling time< 5 minutes
Water treatment6-stage RO with UV light

Dimensions

LabsLabs
Spinning chamber (inside)624 × 474 × 530 mm
Top unit700 × 500 × 1,050 mm
Climate control cabinet1,200 × 750 × 930 mm
Working volume0.15 m³
System weight315 kg Electrical
Vision

Revolutionize patient care

Our vision is to revolutionize patient care together with our partners by setting the standard for electrospun medical product development and quality manufacturing at global commercial scale.

Scientist holding development and manufacturing electrospun product
Mission

Enable our partners

By leveraging our technology platform and full suite of solutions, our mission is to enable our partners to develop, scale, and manufacture breakthrough electrospun medical products that greatly improve patients’ lives.

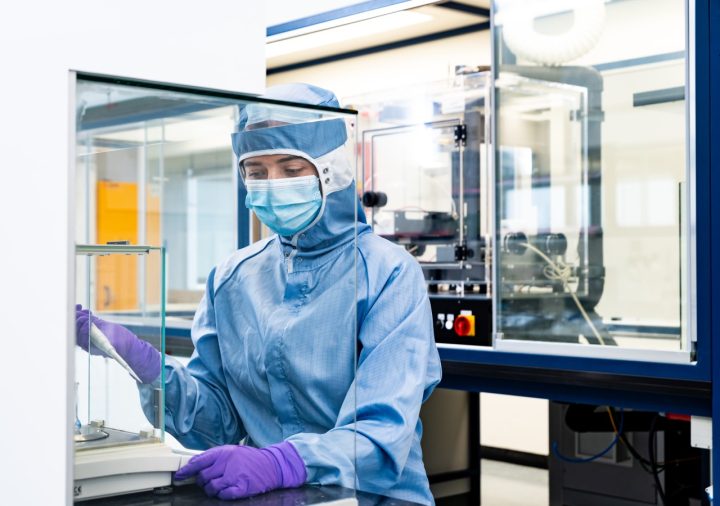

A scientist using an electrospinning machine equipment
Learn more

How can we help?

Biomechanical properties close up view.

Medical electrospinning

Learn more about medical electrospinning and the functional benefits it can add to your new or existing product design.

Our solutions

How can VIVOLTA support your development or manufacturing project with best-in-class medical electrospinning services?
